Bitumen Ductility Testing Machine by Normalab in Iraq

Description

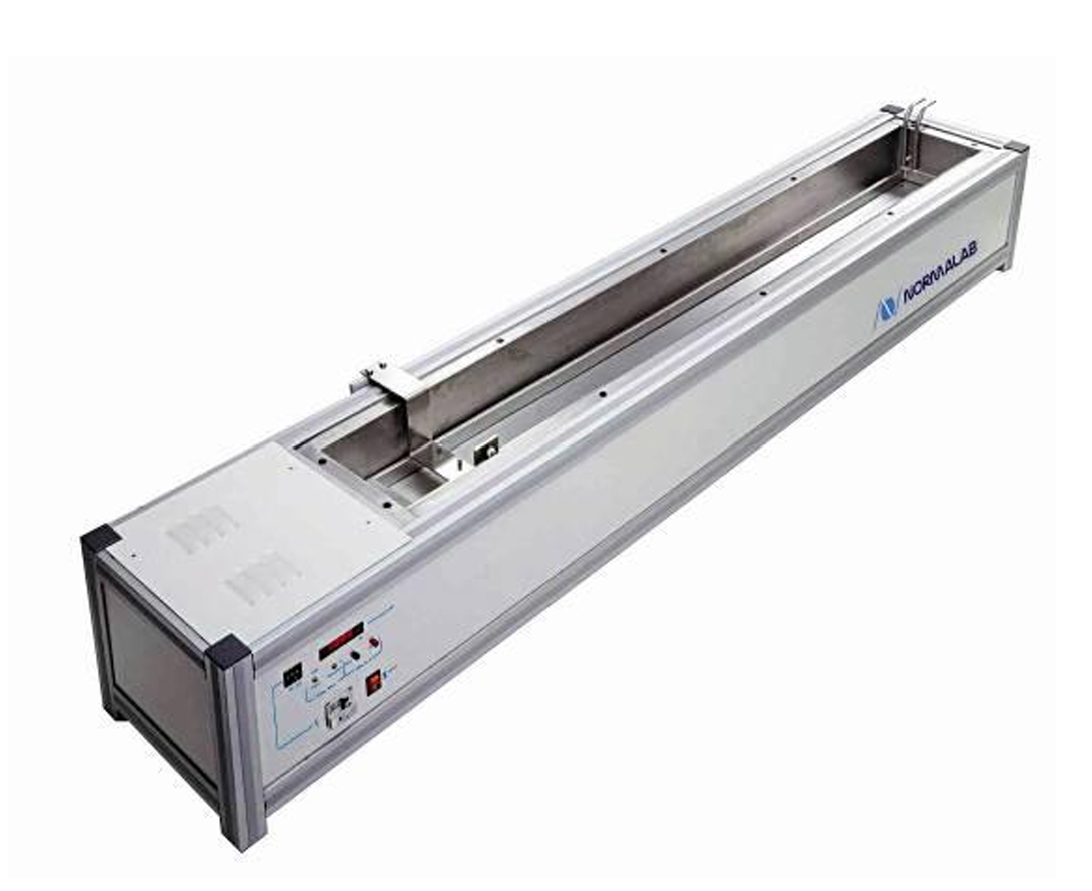

NORMALAB DM 150 Classic Bitumen Ductility Testing Machine The NORMALAB DM 150 Classic is a laboratory testing machine for determining the ductility of bituminous materials. It measures how far a standard bitumen specimen can stretch before breaking under controlled temperature and pulling speed. The unit features three test positions, a 150 cm water bath, adjustable speed and a digital measurement display. Specifications: • Brand: NORMALAB • Model: DM 150 Classic • Standard: ASTM D113, NF T 66-006 and DIN 52013 • Test length: 150 cm • Test positions: Three • Pulling speed: 1–99 mm/min, adjustable in 0.1 mm/min steps • Bath: Circulating water bath with thermostatic coil • Measurement: Digital display • Power supply: 230 V AC, 50 Hz • Optional accessory: Cooling cryostat from -28°C to +100°C Applications: • Ductility testing of bitumen and asphalt • Bitumen elongation and tensile deformation testing • Asphalt binder ductility measurement • Testing of paving-grade and road-construction bitumen • Ductility testing of modified and polymer-modified bitumen • ASTM D113 bitumen ductility testing • Quality control of bituminous binders • Testing in asphalt plants, bitumen laboratories, oil refineries, road-material laboratories and construction testing centers Please refer to the attached datasheet for detailed specifications. We can supply customers throughout Iraq and Syria.
