Automatic Penetrometer instrument by NORMALAB in Iraq

Description

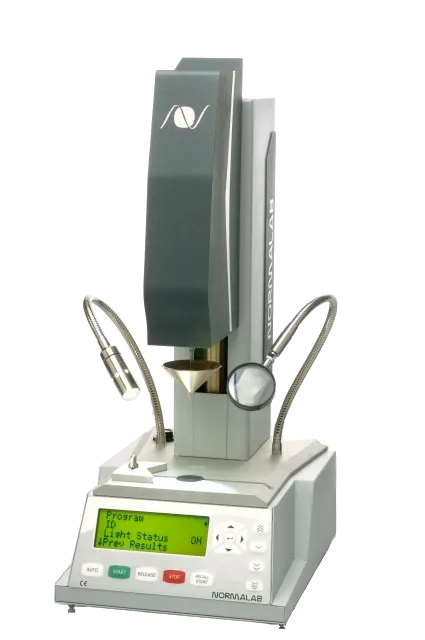

The NORMALAB NPN Tech is a fully automatic penetrometer for measuring the penetration and consistency of semi-solid and solid materials. It provides motorized positioning, automatic zero adjustment and optoelectronic depth detection for accurate, repeatable testing of bitumen, lubricating grease, petroleum wax, petrolatum, cosmetics and similar products. Specifications: • Brand: NORMALAB • Model: NPN Tech • Standards: ASTM D5, D217, D937, D1321, D1403, ISO EN 1426 and IP 179 • Penetration range: 0–75 mm • Display resolution: 0.01 mm • Precision: ±0.05 mm • Penetration time: Up to 999 minutes and 59 seconds • Programs: Up to 20 programmable test tables • Operation: Motorized movement and automatic depth detection • Power supply: 230 V AC, 50 Hz Applications: • Automatic penetration testing of bitumen and asphalt • Bitumen needle penetration test according to ASTM D5 • Bitumen penetration testing according to EN 1426 • Cone penetration testing of lubricating grease • Grease consistency testing according to ASTM D217 • Penetration testing of petrolatum and petroleum jelly • Petroleum wax and paraffin penetration testing • Consistency testing of cosmetic creams and ointments • Penetration testing of pharmaceutical products • Consistency measurement of food products and creams • Quality control in asphalt, petroleum, lubricant, cosmetic, pharmaceutical and food laboratories Please refer to the attached datasheet for detailed specifications. We can supply customers throughout Iraq and Syria.
