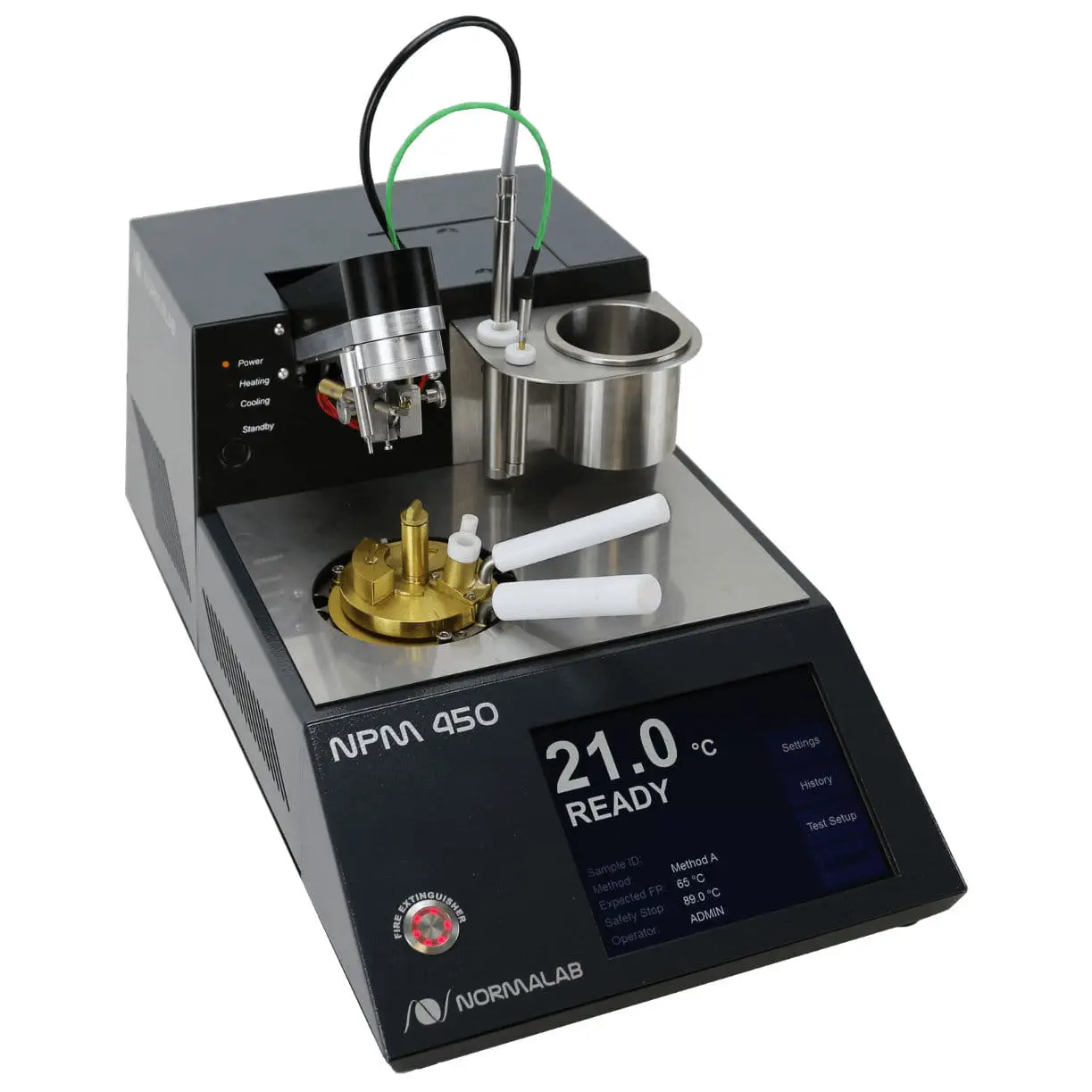

Automatic Flash Point Tester Normalab NPM 450

Description

The Normalab NPM 450 automatic flash point tester determines the flash point of petroleum products and biodiesel using the Pensky-Martens closed-cup method. Designed for petroleum laboratories, refineries and quality-control facilities, it provides fully automated operation, rapid heating and cooling, automatic stirring and reliable flash detection. The analyzer supports ASTM D93, IP 34, ISO 2719 and other international test methods. Basic Specifications • Brand: Normalab • Model: NPM 450 • Test method: Pensky-Martens closed cup • Supported standards: ASTM D93, IP 34, ISO 2719, NF M07-019, DIN 51758, GB/T 261 and JIS K 2265-3 • Test temperature range: 0°C to 410°C • Methods: ASTM D93 Methods A, B and C • Ignition system: Combined electric and gas ignition • Flash detection: Thermocouple • Stirring speed: 50 to 300 rpm • Display: Integrated 6.4-inch HD touchscreen • Connectivity: USB, RS232/LIMS, LAN and VGA • Safety features: Gas-leak detection, flame detection, overtemperature protection and illuminated extinguisher button • Optional safety system: Automatic nitrogen fire extinguisher • Dimensions: 260 × 460 × 185 mm • Weight: 12 kg Applications • Diesel and fuel oils • Lubricating oils • Biodiesel • Petroleum products • Heavy and viscous samples • Flammable and combustible liquids • Refineries and petroleum-testing laboratories • Fuel storage, transportation and safety compliance • Product development and quality-control laboratories Available from an authorized local supplier in Iraq and can also be supplied to Syria. Refer to the attached datasheet for complete technical specifications.
