Monorail Sliding Door and Window by AKPAi in Iraq

Description

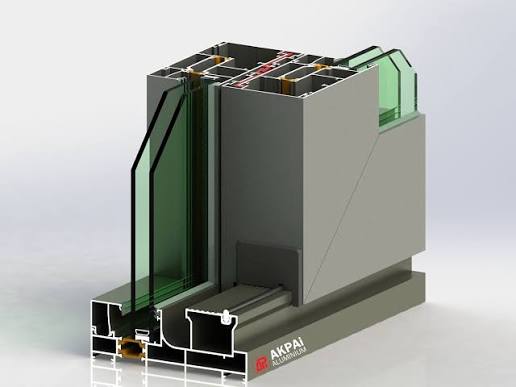

AKPAI MTS 143 Thermal Break Monorail Sliding Door and Window System The AKPAI MTS 143 is a thermally insulated monorail aluminium sliding system designed for large doors and windows. Supporting sash weights of up to 300 kg, it combines smooth sliding operation, thermal insulation and a modern flat-profile appearance. The system offers both lift-and-slide and standard sliding configurations for residential and commercial projects. Specifications: • Product code: MTS 143 • System type: Thermal-break monorail sliding system • Frame width: 137 mm • Sash width: 62.5 mm • Aluminium wall thickness: 1.5–1.7 mm • Supported glass thickness: 14–49 mm • Polyamide strip sizes: 14.8, 18 and 20 mm • Maximum sash weight: 300 kg • Opening options: Lift-and-slide and standard sliding • Profile appearance: Flat and smooth on the interior and exterior • Sealing: EPDM glazing and weather-sealing gaskets • Hardware: Compatible with European lift-and-slide fittings • Corner connection: Punched and Allen-type corner fixtures Areas of Use: • Large sliding doors and windows • Residential buildings and villas • Commercial buildings and offices • Hotels and apartment developments • Balcony, terrace and garden entrances • Wide glazed openings and panoramic façades • Energy-efficient construction projects Related terms: AKPAI MTS 143, MTS 143 aluminium system, thermal break sliding door, thermal break sliding window, monorail aluminium sliding system, lift and slide aluminium door, 300 kg sliding door system, heavy-duty aluminium sliding door, insulated aluminium sliding window, panoramic aluminium door, large glass sliding door, European lift and slide system, AKPAI aluminium Iraq, sliding door supplier Iraq, thermal break aluminium systems Iraq. Please refer to the attached catalogue for more details. We are authorized distributor for this product and we can supply these products to all provinces of Iraq and also to Syria.
