Circulation Pumps in Iraq, Wet-Rotor Series by DAB

Description

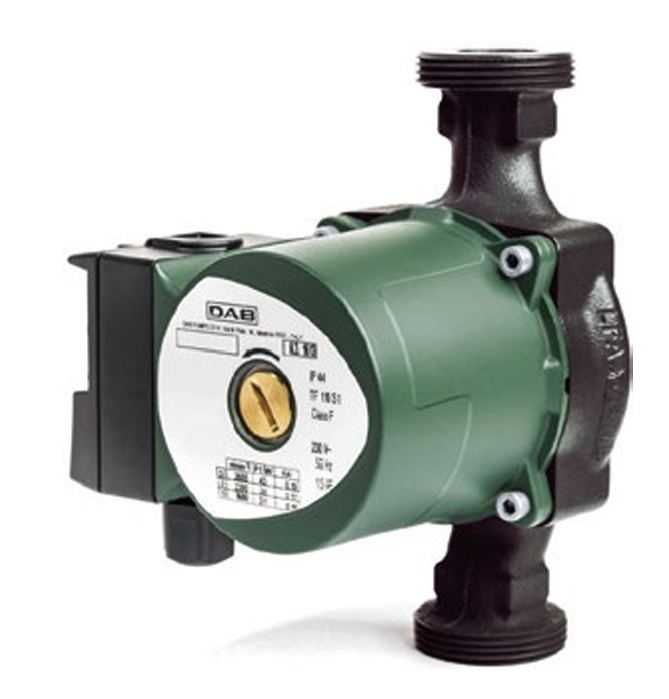

(مضخات الدوّار الرطب لتدوير المياه في العراق من دي أي بي) (پەمپی ڕۆتەری سوڕانی ئاو براندی دی ئەی بی لە عێراق) DAB wet-rotor circulation pumps are designed for water circulation in residential, commercial and industrial heating systems. The range includes threaded and flanged models, with single and twin-pump configurations to suit different installation requirements. VS models feature a bronze pump body for domestic hot-water circulation and are also suitable for solar heating systems. We are an authorized distributor of these products in Iraq and can supply them to all provinces across Iraq. General Specifications: • Brand: DAB. • Product Range: VA, A, B, D, BPH, BMH, DPH, DMH and VS. • Pump Type: Wet-rotor circulation pump, available in single and twin configurations. • Maximum Working Pressure: 10 bar. • Flow Rate and Head: Depending on the selected model; the BPH, BMH, DPH and DMH range offers flow rates up to 78 m³/h and head up to approximately 18 metres. • Power Supply: Single-phase 230 V or three-phase 230/400 V, depending on the model; 50 Hz for the main ranges and 50/60 Hz for VS models. • Speed Settings: Two- or three-speed operation on applicable models, depending on the series and power supply. • Pump Body: Cast iron for the heating circulation ranges; bronze for VS models. • Connections: Threaded or flanged inlet and outlet, with connection sizes and installation lengths depending on the model. Larger flanged models include DN 40, DN 50, DN 65 and DN 80 options. • Liquid Temperature: Generally −10°C to +110°C for heating models, with selected three-phase models suitable for up to +120°C. VS models are rated from −10°C to +85°C for domestic hot-water systems and up to +110°C for other uses. • Protection Rating: IP44, except single-phase BPH/BMH/DPH/DMH versions rated IP42. • Installation: Horizontal motor shaft. • Pumped Liquid: Clean, non-viscous, chemically neutral liquids free from solids and mineral oils. VA, A, B, D, BPH, BMH, DPH and DMH models support water/glycol mixtures containing up to 30% glycol. • Model Options: For detailed specifications of each model, please refer to the attached catalogue. Areas of Use: Residential and central heating systems, radiator and underfloor-heating circuits, commercial and industrial heating installations, and domestic hot-water circulation and solar heating systems using suitable VS models. Related Terms: Circulation pump, circulator pump, wet-rotor pump, heating pump, central heating pump, flanged circulation pump, threaded circulation pump, twin circulation pump, domestic hot-water circulation pump, DAB pump. For detailed specifications of each model, please refer to the attached catalogue.
